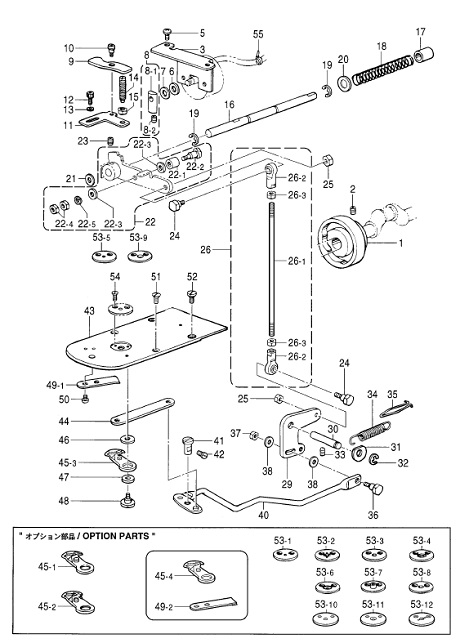

« Back THREAD TRIMMER MECHANISM

  • Download PDF
  • Number: BAS-311F-C2
  • Manufacturer: Brother
  • Machine Class: BAS-311F

Available Products

Ref. Vendor Part # Name Price Quantity
3 BRO S38002301 SOLENOID SET PLATE $3.53
5 BRO 060681212 SCREW BIND M4.37 X 40 X 12 $0.36
6 BRO 154599000 THREAD TRIMMING SOLENOID CUSH $0.92
7 BRO S02652001 WASHER $0.69
8 BRO S23836001 SOLENOID LEVER ASSY $7.13
8-1 BRO S02654001 *** CHANGED TO S23836001 *** SOLENOID LEVER B738 $7.49
8-2 BRO 014680632 "SET SCREW, SOCKET SM4.37-40X" $0.27
9 BRO SA2901001 DRIVING LEVER PUSH LEVER $3.71
10 BRO 145478101 STUD SCREW 4.76 $0.62
11 BRO S38004002 DIVING LEVER STOPPER H=3 $12.70
11 BRO S38004003 DRIVING LEVER STOPPER H=0.6 $24.02
11 BRO S38004004 DRIVING LEVER STOPPER $18.37
12 BRO S59893001 BOLT_SOCKET SM4.37-40X10 $0.69
13 BRO 148847001 WASHER $0.59
14 BRO 159905001 ADJUSTING SCREW $3.44
15 BRO 105812003 NUT 7.94 $1.07
16 BRO S38005001 DRIVING LEVER SHAFT $7.32
17 BRO 231071001 BUSH 8X15 BAS340 $2.16
18 BRO S32235001 SPRING $3.15
19 BRO 048070342 ST0P RING E7 $0.20
20 BRO 153596001 WASHER $1.08
21 BRO 154596000 RUBBER STOPPER $0.65
22-1 BRO S59872001 THREAD TRIMMER ROLLER $4.31
22-2 BRO S59871001 "SHOULDER SCREW, SM4.37" $3.22
22-3 BRO S59873001 "WASHER, PLAIN" $1.10
22-4 BRO SA0049001 "NUT, SM4.37" $0.70
22-5 BRO 028680242 SPRING WASHER 2-4.37 $0.22
23 BRO 014770632 SET SCREW SOCKET SM6335X6 $0.62
24 BRO S02354001 STUD SCREW (B) $11.21
26 BRO S55177001 THREAD TRIMMER ROD ASSY S $166.08
26-1 BRO S55178001 THREAD TRIMMER ROD $8.46
26-2 BRO 141492001 JOINT $78.00
26-3 BRO 100022005 **** CHANGED TO 100022004 **** $0.26
29 BRO S49650001 THREAD TRIMMER LEVER $3.34
30 BRO S10195101 @THREAD TRIMMER LEVER SHAFT $34.47
31 BRO 110367001 WASHER $0.69
32 BRO 048060342 STOP RING $0.22
33 BRO 014760632 SET SCREW SOCKET (CP) SM5.95X6 REPLS:014760622 $0.62
34 BRO S38011001 THREAD TRIMMER RETURN SPRING $2.57
35 BRO S49651001 SPRING HOOK $1.32
36 BRO 110233001 STUD SCREW 4.76 $3.93
37 BRO 110161004 **** CHANGED TO 110161006 **** $0.31
38 BRO S49994001 *** CHANGED TO SB3329001 *** WASHER PLAIN 4.76 $0.52
40 BRO S42856001 CONNECTING ROD LEVER ASSY $64.58
41 BRO S10202201 LEVER SHAFT $3.71
43 BRO S10203201 NEEDLE PLATE $291.38
44 BRO S10204101 THREAD TRIMMING CONNECTING ROD $7.37
46 BRO S10208001 WASHER BAS310 $3.91
46 BRO S10208002 WASHER BAS310 $3.90
46 BRO S10208003 WASHER BAS310 $3.90
